PERFORMANCE ADVANTAGES
.Good corrosion resistance
·Rapid touch dry with solid epoxy resins
.Good colour and light stability
.Compatible with wide range of solvents

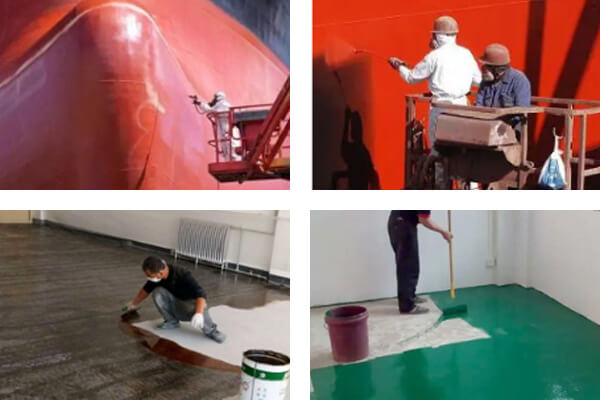

APPLICATIONS
.Solvent based marine & protective coatings
.Primers, sealers and coatings for concrete
STORAGE LIFE
At least 24 months from the date of manufacture in the original sealed container at ambient temperature. Store away from excessive heat and humidity in tightly closed containers.Do not freeze.
HANDLING PRECAUTIONS
Refer to the Material Safety Data Sheet for
Ancamide 221-X70 curing agent.
TYPICAL PROPERTIES | |
| Appearance | Clear amber liquid |
| Colour1(Gardner) | 9 max |
| Viscosity2@25°℃[mPa.s] | 1000-2500 |
| Amine Value3[mg KOH/gl | 155+10 |
| Specific Gravity @21℃ | 0.94 |
| Recommended use Level 4[phrl] | 51 |
| Solids Content.[%] | 70+2 |
| TYPICAL HANDLING PROPERTIES [@ 50 phr] | |
| Pot Life 5 [hrs] | >7hrs |
| Thin Film Set Time6 25°C[hrs] | 4.5 |
| Set to touch(finger) [hrs] | 1.5 |
| Hard dry thumb twist [hrs] | 7.5 |
| TYPICAL CURE SCHEDULE |
| (i)2-7 Days at Room Temperature |
FILM PROPERTIES AFTER 10 DAYS CURE @23℃ | |
| Perzoz Hardness | 315 |
| Direct impact [cm.kg] | 200 |
| Reverse impact [cm.kgl] | 200 |
| Flexibility Cylindrical Mandrel7(mm pass) | 3 |
1 ASTM D1544-80
2 Brookfield RVTD,Spindle 4
3 Perchloric Acid Titration
4 Theoretical value with Bisphenol A diglycidyl ether (EEW=500)
5 Clear coat formulation,time to double in viscosity
6 BK Drying Recorder Phase ll
7 Erichsen mandrel tester 266
