CHARACTERISTICS
• Excellent adhesive strength to various materials such as metal, glass, plastics, wood porcelain, concrete, & rubber.
• Excellent toughness flexibility.
• Excellent chemical resistance.
• Easy formulation by 1/1 ratio.
• Low toxicity in comparison with aliphatic polyamine.
EXAMPLES OF STANDARD FORMULATION
1) Adhesive for metal to metal
SUNMIDE 315 50
DER#331 50
Filler 0 ~ 150
2) Adhesive for rubber or flexible plastics
SUNMIDE 315 60
DER#331 40
(Increase portion of Sunmide 315 in case adherant has flexibility.)
3) Epoxy Coal tar
Part A
Liquid Epoxy resin 60 parts (wt)
Coal tar 100 parts (wt)
Part B
SUNMIDE 315 40 parts (wt)
(Mix both thoroughly and apply more if necessary. You may add solvent in the above formulation.)
PACKING
In 180 kgs net per steel drum
STORAGE
Stable under temperate or tropical conditions.
Recommended shelf life – 1 year
SAFETY AND HANDLING PRECAUTIONS
Always ensure that all health and safety procedures are in accordance with local and national Government requirements. Normal handling precautions should be observed, and in he event of contamination the affected parts should be washed with soap and water.
| SPECIFICATION | |
| Amine Value | 310 ± 20 |
| Acid Value | 3 max. |
| Colour No (G/H) | 12 max. |

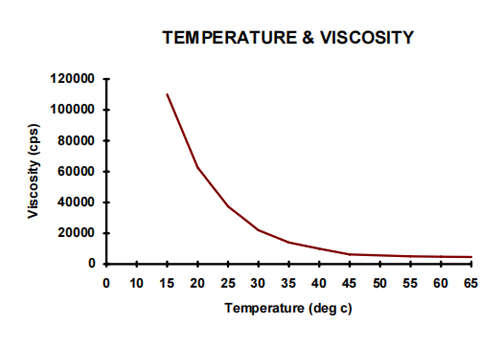

| Viscosity (CPS, at 40ºC) | 9,000 – 11,000 |
AHEW 125
| BLENDING RATIO | |
| Sunmide 315 | 30 ~ 60 phr |
| DER #331 (EPON #828) | 70 ~ 40 phr |
| CURING CONDITION AND POT LIFE | |
Curing Condition 1) 20ºC 2) 25ºC 3) Room Temperature 4) 100ºC | One week Three days 24 hours 1 hour |
Pot life 1) 25ºC 2) 40ºC | 160 minutes 71 minutes |

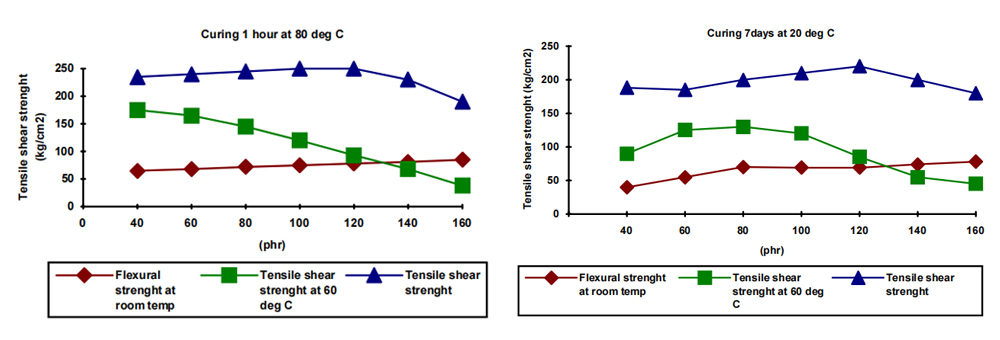

PERFORMANCE OF SUNMIDE 315
HDT
SUNMIDE 315 & Epikote #815 = 50ºC ~ 55ºC
SUNMIDE 315 & Epikote #828 = 55ºC ~ 60ºC
| ELECTRICAL PROPERTIES (DER#331-J) | |||
| Test item | Temp | Value | |
| Tensile strength Max. (PSI) | 25ºC | 7700 | |
| Compressive strength Max. (PSI) | 25ºC | 10500 | |
| Impact strength | Max. (PSI) | 25ºC | 12000 |
| Modulus (x10⑤ ) | 25ºC | 3.6 | |
| Dielectric constant (IKC/sec) | 25ºC | 2.6 | |
| 70ºC | 3.5 | ||
| Volume resistivity (ohm-cm) | 25ºC | 10⑮ | |
| 80ºC | 10⑩ | ||
| Dissipation factor | 1Kc/sec | 25ºC | 0.008 |
| 70ºC | 0.076 | ||
| 1Mc/sec | 25ºC | 0.026 | |
